Envirograf Fire Proof Cat Flap Protector

Brand:
Reference:
E118

Fire Proof Cat / Animal Flap Protector

  • Intumescent metal box fits around standard sized cat/dog flaps
  • When exposed to heat, the intumescent material expands and seals the area
  • Maintains integrity of fire doors in apartment blocks and houses
  • Cat/Dog Flaps are not supplied with this product

Envirograf Product 118

£46.29
£46.29 (excl VAT)
Colour
  • White
  • Brown
  • Grey
Staywell Flap Cutout Size
Description

About Fire Proof Cat / Animal Flap Protector

Envirograf Product 118

PLEASE NOTE: PRODUCT IS NOT SUITABLE FOR USE WITH ALUMINIUM ANIMAL DOOR FLAPS

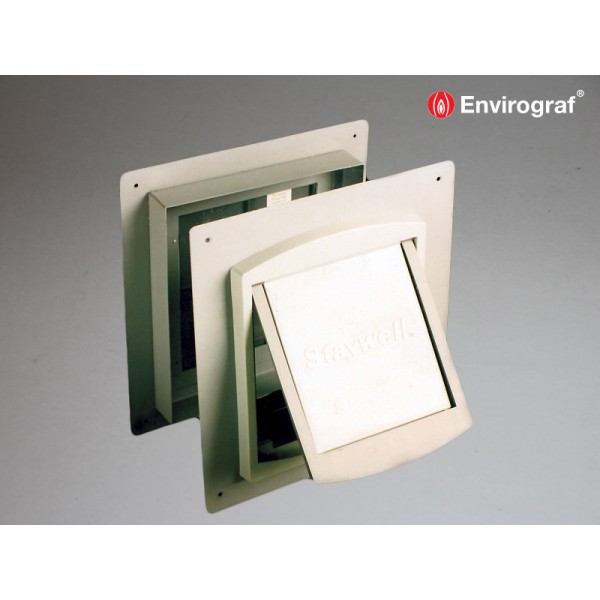

Product 118 is an intumescent animal flap protector for fire-rated doors. The metal box houses an intumescent strip which when exposed to heat of over 120C will expand and seal the hole preventing the spread of flame.

The internal intumescent material does not affect the operation of the flap. The Fire Proof Animal Flap protectors are also fitted with PVC-faced sponge making insufficiently smooth for your cat or dog to pass through.

These cat/dog flap protectors are designed to fit around standard cat/dog flaps. The cat or dog flap itself is not included and will need to be purchased separately.

The protectors are sized for Staywell animal flaps.

For a complete list of sizes go to the tab labelled Staywell Flap Type.

This product can be made to order, if your size is not shown please call us for more information and pricing.

Animal Flap Protector Sizes

Staywell Flap TypeStaywell Flap Cutout SizeFlap Protector Cutout Size
FPO1 Series 300/400/500 168mm x 175mm   238mm x 245mm
FP02  Series 600 (Small) 245mm x 150mm 315mm x 220mm
FP03  Series 600 (Medium) 348mm x 225mm  418mm x 295mm
FP04  Series 600 (Large) 451mm x 277mm  522mm x 348mm
FP05  Series 600 (Extra Large) 642mm x 366mm  733mm x 457mm
FP06  Series 700 (Small) 180mm x 155mm 255mm x 228mm
FP07  Series 700 (Medium) 265mm x 230mm   335mm x 300mm
FP08  Series 700 (Large)  354mm x 306mm 425mm x 377mm
FP09  Series 800 429mm x 291mm 499mm x 361mm

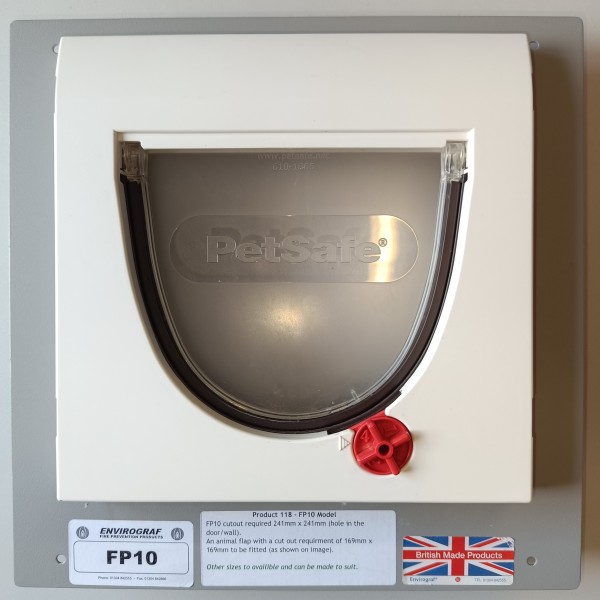

FP10  Series 900 169mm x 169mm 241mm x 241mm
FP11 251mm x 251mm  323mm x 323mm
FP12 210mm x 227mm 281mm x 298mm
Product Features
E118
