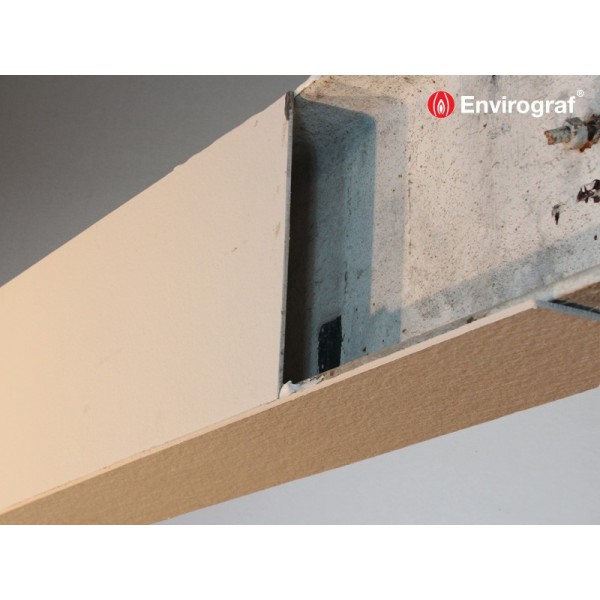

A non-fibrous, lightweight board measuring 1000mm x 1200mm, which is affixed to steel to provide additional fire protection and insulation. Designed for use with structural steelwork and metal ducting. Available in white as standard, but can be faced with decorative laminate at extra cost.
Board size - 6mm, 10mm or 13mm thick x 1000mm x 1200mm
About Fire Protection Board for Steelwork
A non-fibrous, lightweight board measuring 1000mm x 1200mm, which is affixed to steel to provide additional fire protection and insulation. Designed for use with structural steelwork and metal ducting. Available in white as standard.
Can be easily cut to size with a sharp knife
Provides up to 104 minutes integrity and insulation
Application Instructions
Cut board to size with a sharp knife. Adhere board to steel using Envirograf Intumescent Adhesive (Product 46). IA Adhesive can also be used to fill in joints between boards.
Off-cuts can be adhered into the webs of the steel, providing additional protection and preventing waste.
