Envirograf Self Closing Door Hinge - Set of 3

Brand:
Reference:
E071SCH

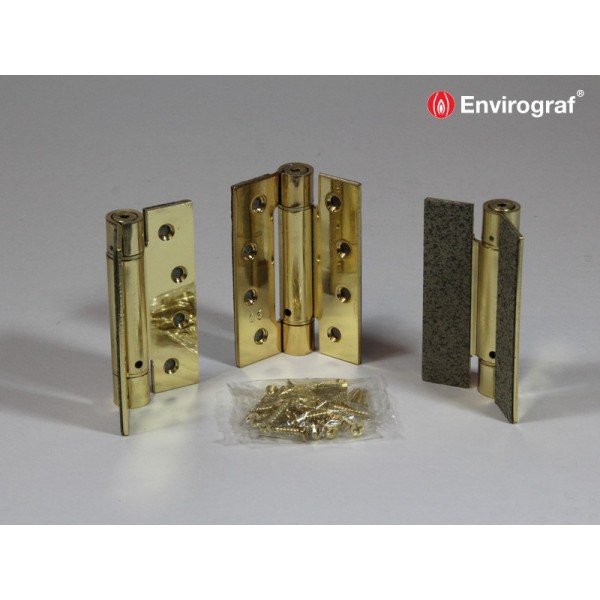

This set of three hinges acts as a complete door closer. Hinges can be individually adjusted to vary the tension and the top hinge can be tightened to allow for buckled door tops.

Available in white, brown, polished brass and satin stainless steel.

£59.04 (tax excl.)
£59.04 (excl VAT)
£70.85 (incl VAT)
Colour
  • White
  • Brown
  • Chrome
  • Stainless Steel
  • Brass
Description

About Self Closing Door Hinge - Set of 3

This set of three hinges acts as a complete door closer. Hinges can be individually adjusted to vary the tension and the top hinge can be tightened to allow for buckled door tops.

Fitting

  1. Please leave the grey intumescent paper on the back of the hinges, it is an essential part of the fire protection product.
  2. Ensure there is a gap of 3 - 4mm at the head and closing side and a 1mm gap on the hinge side.
  3. Fit the hinges to the door and frame and see whether the door closes without adjustment
  4. If adjustment is required, then adjust the top and bottom hinges with the larger Allen key to close the door fully onto the seals without slamming. Then insert the grub screw into the threaded hole and tighten fully with the smaller Allen key.
  5. Adjust the centre hinge slightly tighter than the other two hinges to latch.

Allen keys and screws are supplied with the set of three hinges.

Product Features
E071SCH
